Pivot door

An impressive design statement

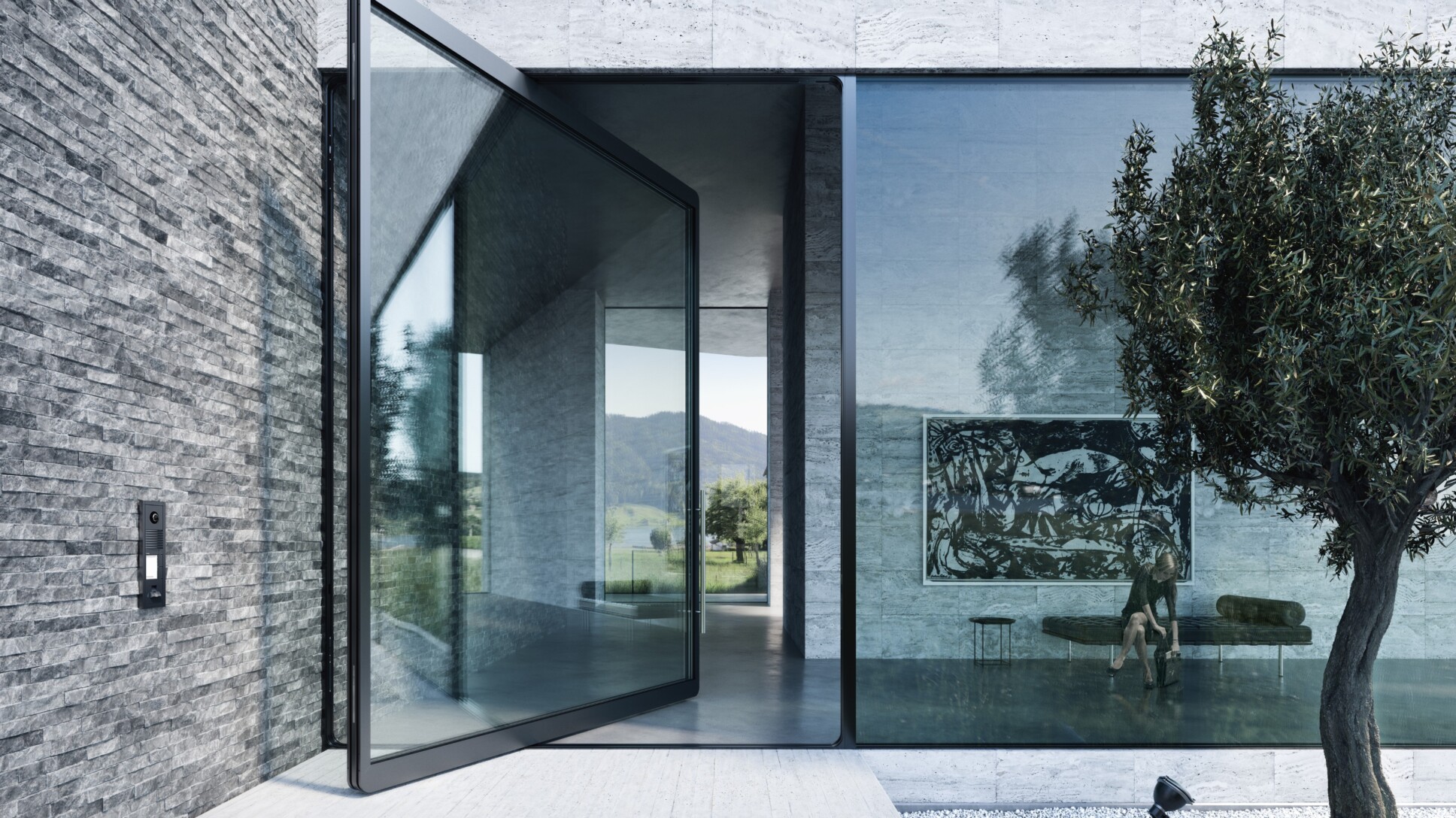

Pivot doors are a fascinating solution for large and modern entrance areas. At the slight push of a button, the door swings weightlessly around the asymmetrical pivot point on both sides. Front doors, interior doors, all doors enable very large panel size and a wide range of custom design options – all-glass, wood, aluminium or other materials.

Unique sealing system –
how air-lux works

Pivot door

Active seal:
by pressing the button, air is introduced into the frame and the seal is pumped up. The seal presses against the sliding profile and closes the gap between the slider panel and the fixed frame to create a perfect seal.

Seal inactive:
the button is pressed a second time to open the unit, the air leaves the unit and the seal retracts to its original concave profile.

Features of the air-lux
pivot door

Operation

Opening:
Interior operation is preferably via a push button built into the vertical frame profile. When the push button is pressed in the closed position, the two air seals empty and the locking bolts retract. Now, the entry doors are open. Exterior operation can be through a key fob, fingerprint scanner or numeric code.

Closing:
A mechanism installed in the frame centres the modern pivot doors into the final closing position after being switched manually.

When the push button is pressed, the locking bolts close the element and air is pumped into the seals at the same time. This makes the hinge system and hardware perfectly sealed and the entry doors are closed.

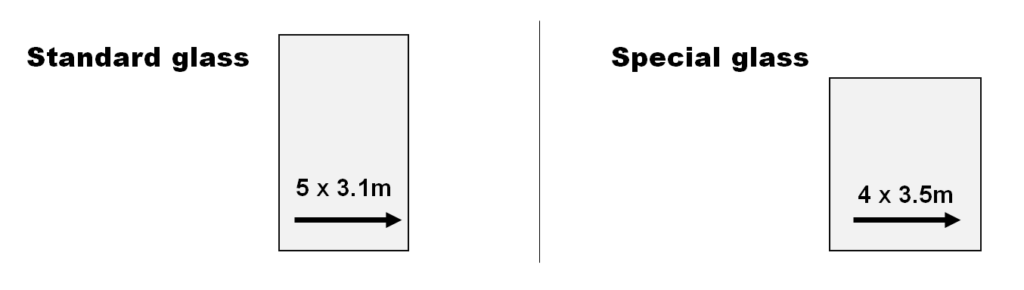

Sizes and weight

Bigger is better – and this is also true for air-lux pivoting doors. The larger the pivoting door, the more impressive the effect when open. We recommend a maximum area of 15 m (three metres wide, five metres high). You have other plans? Get in touch with us for a custom designed pivot door – we look forward to any challenge.

The maximum weight of an air-lux pivoting door is approximately 500 kg, and we can accommodate glass up to a maximum thickness of 60 mm. If required, we can manufacture your pivoting door with alarm glass or bullet-resistant safety glass.

Surfaces and materials

Whether a special wood, architectural bronze, stainless steel or stone, we tailor door leaves and handles to your requirements with individually selected materials and surfaces. The core of all pivot door models is always our high quality, thermally insulated aluminium and plastic profiles, clad with the desired material.

More about surfaces

More about materials

Safety

The air-lux pivot doors have four electromechanical closing points and the two pivots, which are connected to the fixed part by means of ball bearings. Advanced hardware components to monitor the door’s closing position and locking of doors provide convenient control and monitoring of the pivot door through the building services (alarm system, home automation system, etc.). You can also use smartphones and tablets. Competent air-lux technicians ensure the careful coordination of the pivot system with safety officers and electrical planners.

Brochures and videos

Brochures

Videos

Animation pivoting door

Pivoting door at BAU 2019

Technical data
